Wich mat should i choose

All our mats in a list

SoortType1e zone2e zoneHoogteBelastbaarheid per m2Bijzonderheden
ABI BorstelmatStandaardjanee22 mmtot 1900 kgmet logo mogelijkheid
ABI AluflexmatSeniorja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie20-23 mmtot 2100 kgmet connectiestrip
ABI AluflexmatMediumja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie17-20 mmtot 2100 kgmet connectiestrip
ABI AluflexmatJuniorja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie12-15 mmtot 1500 kgmet connectiestrip
ABI AlukabelmatSeniorja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie20-23 mmtot 2100 kgmet kabel
ABI AlukabelmatXXLja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie24-27 mmtot 3800 kgmet kabel, aluminium dikte van 2,5 mm
ABI AlukabelmatMinija, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie10-13 mmtot 1900 kgmet kabel en schraapprofiel
ABI Alukabelmat10x10ja, met borstels en/of rubberja, met tapijt of naaldvilt of combinatie22-25 mmtot 2100 kgmet kabel
ABI DuplomatStandaardneeja12 mm en 18 mmtot 2900 kgaan twee kanten te gebruiken
ABI DuplomatRubberjanee12 mm en 18 mmtot 2900 kgaan twee kanten te gebruiken
ABI DuplomatBorstelsjanee22 mmtot 2100 kgmet logo mogelijkheid
ABI DuplomatZebraneeja12 mm en 18 mmtot 2900 kgaan twee kanten te gebruiken
ABI DuplomatDubbele profielen ja, met rubberja, standaard, zebra of open constructie12 mm en 18 mmtot 2900 kgaan twee kanten te gebruiken
ABI DuplomatOpen constructieja, met borstels en/of rubberja, standaard, zebra of dubbele profielen12 mm en 18 mmtot 2100 kgaan twee kanten te gebruiken
ABI DuplomatPanelsneeja, standaard zwart of grijs en in zebra12 mm en 18 mmtot 3100 kgaan twee kanten te gebruiken

CONTACT

Contact form

  • This field is for validation purposes and should be left unchanged.

ABIMAT

Almelose Borstelindustrie B.V.

References

Projects we’re proud of!

Abi entrance mat installation advice

Custom made mats are our strength. We will be happy therefore to help you with the measuring or installation, so that you don’t have to worry about anything!

If you prefer to measure your mat yourself, please consider the following:

  • The floor surface must be completely smooth, which also means the oor of any mat well.
  • If the mat has a special shape, we recommend that a template is made.
  • Our mats are delivered rolled up with the brushes
    or carpet facing inwards, except for our Duplomats. Customers should also keep the mat rolled up when moving it during installation. Dragging the mats can lead to wires/connections snapping or other damage.
  • Please bear in mind, when measuring, that for a mat well a few millimetres must be reduced from the mat.
    • Brush mat: ± 5-7 mm
    • Aluflex mats: ± 3-5mm
    • Alucable mats: ± 3-5 mm
    • Duplomats: ± 3-5 mm

Inlays Aluflex and Alucable mats

Rubber

Black

Needle punch

Black
Grey
Tan

Carpet Diamond

007 Hard coal
Not available
014 Grey
016 Grigio
Not available
Not available
Not available
052 Graphite
Not available
Not available
070 Sand
071 Taupe Uni

Note: these colours are always approximate and may vary slightly from time to time.

Our 16 colours brushes

B01 Black
B02 Dark grey
B03 Light grey
B04 Brown
B05 Yellow
B06 Tan
B07 Dark green
B08 Green
B09 Mint green
B10 Blue
B11 Dark red
B12 Red
B13 Orange
B14 Purple
B15 White
B16 Light blue

Note: these colours are always approximate and may vary slightly from time to time.

Matten met uw eigen logo

Personalize your entrance

Almelose Brush Industry (ABI) has acquired a worldwide reputation for its expertise in manufacturing entrance mats and brushes with special applications. Thanks to our experience of many years and our revolutionary ideas we can offer you a lot more than just the manufacturing of brushes for your entrance mat. With the colours available in nylon threads as well as our ultra modern production techniques, it is possible for us to work logos and designs into the brushes.

Personalize your entrance

We can process logos both into our brush mats, all our Alu ex mats and Alucable mats, and into our Duplomats. The only thing we need from you is an original EPS le. If you haven’t got one, it’s no problem at all, as we can also have it made for you at a small cost. A logo in your mat will enable you to personalize your entrance and give your building a smart appearance!

In 16 colours

Our nylon yarns are available in 16 different colours.

Show me the 16 colours

DE ALMELOSE BORSTELINDUSTRIE

Our mats find their way to customers all over the world!

Mats with your own logo

16 different brush colours

Inlays Aluflex and Alucable mats

Placing of ABI Entry mats

Profiles

Covering profiles

We offer you a range of high-quality covering profiles to give your entrance a marvellous appearance. These finishing profiles are also often used when the installation of the mat requires a large number of saw cuts that you would like to cover.

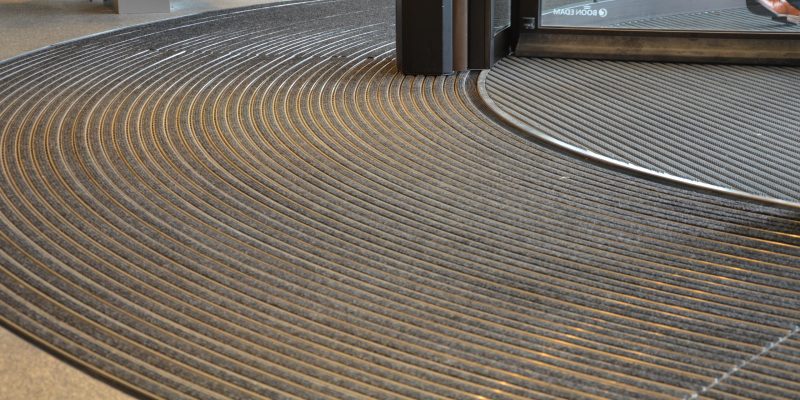

As we can also bend these profiles they are also suitable for revolving doors or turning stiles.

We offer you a range of high-quality covering profiles to give your entrance a marvellous appearance. These finishing profiles are also often used when the installation of the mat requires a large number of saw cuts that you would like to cover.

As we can also bend these profiles they are also suitable for revolving doors or turning stiles.

Click on image to enlarge

Frames

A frame is a very interesting option if an entrance must still be built. This allows the mat to be sunken a few millimetres into the ground, whereby the top of the mat becomes level with the ground.

The frame usually consists of four profiles that have been cut diagonally and attached to each other with screws or anchors. The entire frame can be installed before the concrete is poured, but can also be attached to the concrete afterwards. As the well and the frame must be entirely finished before the installation of the entrance mat, it is recommended to order the frame in advance. We will be happy to deliver the entrance mat a little later.

Our framework is available in 4 different heights. The advantage of our profiles is that two different heights are processed in one profile. This means that even if the depth of the well is slightly changed at the very last moment our profile can be placed anyway due to its flexibility. The aluminium of the two profiles is anodized.

Click on image to enlarge

Sloping profiles

The ABI entrance mat program is renowned for its cleaning ability, durability and excellent appearance. When a mat has not been sunken or placed in a mat well, it is recommended to fit an angle edge profile, which makes it easier for wheel chairs, walkers and prams to enter your premises.

If the Sloping profile is fitted to the approach side of the mat, then the mat can still be rolled up. Sloping profiles can also be delivered as a set. The mat gets closed off on three sides, with the fourth side against the entrance. In that case, the three profiles are cut diagonally and then by screwing the profiles to the ground, the mat can still be rolled up.

The Sloping profiles are available in two different heights. The lowest profile is made from aluminium brut. The aluminium of the higher version is anodized.

Click on image to enlarge

T-profiles

When the cutting of a mat is required to make sure that the mat is not too heavy or wide, T-profiles are used.
The cutting of the mat is done in consultation with the client. The mat may be cut in two, three or even more parts, depending on the width and design of the entrance. A T-profile is then placed between the parts, thus ensuring an excellent appearance of the mat.

Our T-profiles are available in three different heights, 10 mm, 14 mm and 17 mm so that any selected ABI mat has a T-profile to go with it. All three heights are made in brut aluminium.

Click on image to enlarge

Which mat should I choose?

All our mats in a list

ABI matType1st zone2nd zoneHeightMaximum weight per m²Specifications
ABI Brush matStandardyesno22 mmup to 1900 kgwith logo possibility
ABI Aluflex matSenioryes, with brushes and/or rubberyes, with carpet, needlepunch or combination20-23 mmup to 2100 kgwith PVC connection profile
ABI Aluflex matMediumyes, with brushes and/or rubberyes, with carpet, needlepunch or combination17-20 mmup to 2100 kgwith PVC connection profile
ABI Aluflex matJunioryes, with brushes and/or rubberyes, with carpet, needlepunch or combination12-15 mmup to 1500 kgwith PVC connection profile
ABI Alucable matSenioryes, with brushes and/or rubberyes, with carpet, needlepunch or combination20-23 mmup to 2100 kgwith wire
ABI Alucable matXXLyes, with brushes and/or rubberyes, with carpet, needlepunch or combination24-27 mmup to 3800 kgwith wire, aluminium thickness of 2,5 mm
ABI Alucable matMiniyes, with brushes and/or rubberyes, with carpet, needlepunch or combination10-13 mmup to 1900 kgwith wire and scraping profile possibility
ABI Alucable mat10x10yes, with brushes and/or rubberyes, with carpet, needlepunch or combination22-25 mmup to 2100 kgwith wire
ABI DuplomatStandardnoyes12 mm and 18 mmup to 2900 kgto use on both sides
ABI DuplomatRubberyesno12 mm and 18 mmup to 2900 kgto use on both sides
ABI DuplomatBrushesyesno22 mmup to 2100 kgwith logo possibility
ABI DuplomatZebranoyes12 mm and 18 mmup to 2900 kgto use on both sides
ABI DuplomatDouble profilesyes, with rubberyes, Standard, Zebra or open construction12 mm and 18 mmup to 2900 kgto use on both sides
ABI DuplomatOpen constructionyes, with brushes and/or rubberyes, Standard, Zebra or double profiles12 mm and 18 mmup to 2100 kgto use on both sides
ABI DuplomatPanelsnoyes, Standard in black, grey or in Zebra12 mm and 18 mmup to 3100 kgto use on both sides

ABI Duplomats

The ultimate mat for extremely frequent passage in the second entrance area

Our ABI Duplomat is superbly suitable when your entrance is exposed to substantial wear and tear due to extreme use. Think of shopping centres, airports and metro stations, for instance.

Ideally suited for:

Wheel chairs

Shop trolleys

Other transport trolleys

The ABI Dublomatten are available in different variants.

ABI Duplomats Standard

Our ABI Duplomat is superbly suitable when your entrance is exposed to substantial wear and tear due to extreme use. Think of shopping centres, airports and metro stations, for instance.
As manufacturer of this mat we will usually recommend our Duplomat Standard in these projects, also very suitable for wheel chairs, shop trolleys or other transport trolleys.

The ABI Duplomat Standard consists of rubber profiles with fabrics integrated through vulcanisation. These profiles ensure a proper cleaning action and absorb an extreme quantity of water. As after the vulcanisation process we brush off the rubber on either side of the profile, this mat can be used on both sides. These rubber profiles are connected by means of aluminium spacer profiles, our H-profiles.
Steel pins ensure that all the profiles are assembled, which means that the mat cannot be rolled up and is assembled in modules of a maximum of 60 cm.
The ABI Duplomat Standard is available in two different heights of 12 and 18 mm. Our standard colour is grey, giving the mat a good appearance for a longer period of time. Our ABI Duplomat Standard is also available in black. As our integrated fabrics are dyed beforehand, the mat keeps its original colour and hardly shows any signs of wear.
Aluminium height12 or 18 mm
Aluminium thickness1,5 mm
Mat height12 or 18 mm
Profile distance15 mm
Clamping pins63 cm steel pins
ProfileRubber profile with fabrics integrated by means of vulcanisation
ColoursGrey and black
CouplingAluminium H-profile
AluminiumStandard brut
Maximum static loadup to 260 kg per cm2
Guarantee10 years
Wheel load163 kg per wheel
Weight12 mm = ca. 15 kg / m2
18 mm = ca. 17 kg / m2

Click on image to enlarge

ABI Duplomats panels

A variant of our Duplomat Standard are the ABI Duplomat panels. These are panels of 40 x 40 cm and are put on the floor like tiles. The panels are available in grey, black and zebra colour. The advantage of these tiles is that they are easy to transport and easy to keep in stock. When a Duplomat tile is damaged you can replace it immediately by a new one and you don’t need an entire new floor!heel nieuwe vloer nodig!

Aluminium height12 or 18 mm
Aluminium thickness1,15 mm
Mat height12 or 18 mm
Profile distance15 mm
Clamping pins63 cm steel pins
ProfileRubber profile with fabrics integrated by means of vulcanisation
ColoursGrey and black
CouplingAluminium H-profile
AluminiumStandaard brut
Maximum static loadup to 260 kg per cm2
Guarantee10 years, with normal use and regular maintenance
Wheel load163 kg per wheel
Weight12 mm = ca. 15 kg / m2
18 mm = ca. 17 kg / m2

Click on image to enlarge

ABI Duplomats Zebra

Aluminium height12 or 18 mm
Aluminium thickness1,15 mm
Mat height12 or 18 mm
Profile distance15 mm
Clamping pins63 cm steel pins
ProfileRubber profile with fabrics integrated by means of vulcanisation
ColoursCombination of black and gray fabrics
CouplingAluminium H-profile
AluminiumStandaard brut
Maximum static loadup to 260 kg per cm2
Guarantee10 years
Wheel load163 kg per wheel
Weight12 mm = ca. 15 kg / m2
18 mm = ca. 17 kg / m2

Click on image to enlarge

ABI Duplomats with rubber

You can also choose the ABI Duplomat with Rubber if this is more to your liking. This mat is very suitable for outdoors and consists of high-quality EPDM rubber. It has ribbed profiles which avoids slipping on wet surfaces.

This ABI Duplomat with Rubber is available in heights of 12 and 18 mm and completes, together with the brushes, our Duplomat range. A combination of the various profiles is also possible.

Aluminium height12 or 18 mm
Aluminium thickness1,15 mm
Mat height12 or 18 mm
Profile distance15 mm
Clamping pins63 cm steel pins
ProfileRubber profile with fabrics integrated by means of vulcanisation
ColoursCombination of black and gray fabrics
CouplingAluminium H-profile
AluminiumStandaard brut
Maximum static loadup to 220 kg per cm2
Guarantee10 years
Wheel load160,5 kg per wheel
Weight12 mm = ca. 15 kg / m2
18 mm = ca. 17 kg / m2

Click on image to enlarge

A combination of various profiles in one module is also possible. Just ask and we manufacture and assemble the product!
The great advantage of our ABI Duplomats is that the aluminium profiles are the same size. This allows you to connect various modules together.
All our Duplomats are available with double profiles for both outdoor and indoor use, whereby double profiles alternate with an aluminium profile.

ABI Duplomat with brushes

This mat brushes off coarse grit, sand and other soil from shoe soles. As the mat gets walked upon, the brushes automatically contour the sole of the shoe, thereby removing street soil from them, without having to wipe one’s feet.

Aluminium height18 mm
Aluminium thickness1,15 mm
Mat height21 mm
Profile distance15 mm
Clamping pins63 cm steel pins
ProfilePVC profile 15 x 15 mm with brushes.
Brushes6.6 nylon (polyamide). This material has the property that it bends back to its original state after being walked
ColoursAvailable in 14 colors
CouplingAluminium H-profile
AluminiumStandaard brut
Maximum static loadup to 260 kg per cm2
Guarantee10 years
Wheel load163 kg per wheel
Weightca. 16 kg / m2

Click on image to enlarge

ABI Duplomat open constructie

Our Duplomats are standard manufactured in a closed construction, thus trapping dirt. This construction makes that your entrance is easy to clean and you do not have to lift the mat out of the well regularly. But an open construction is also possible and provides your entrance with an entirely different look.

Our Duplomat Open construction is assembled in the same way as the Duplomat Standard, with this difference that a 4 mm EPDM distance cup is constructed between each profile and the aluminium, ensuring dirt to fall through the mat.

1st zoneNo
2nd zoneYes
Thickness12 mm and 18 mm
Maximum static loadUp to 260 kg per cm2
SpecificsCan be used on both sides
ProfileStandard or in EPDM rubber
Wheel load163 kg per wheel
Weight12 mm = 13 kg/ m2
18 mm = 15 kg/m2

Click on image to enlarge

ABI Brush Mats

A clean interior starts at your front door

Everyone is familiar with the problem of soil trailed in from outside. Of the many solutions available, the only efficient one is that of the entrance brush mat. Say goodbye to soil with an ABI roll-up brush mat. This mat brushes off coarse grit, sand and other soil from shoe soles. As the mat gets walked upon, the brushes automatically contour the sole of the shoe, thereby removing street soil from them, without having to wipe one’s feet.

With our brush mats it’s easy to keep dirt outside

Possibilities

Brush mats are especially effective outdoors (the first area), but can also be used
indoors. This special mat is standard available in 14 colours that are UV stabilized. If required, we can also adapt the height of the brushes to your needs. We can also process logos into the brush mats to give your entrance a personal touch.en.

Composition

The ABI brush mat consists for almost 100% of recycled material. This mat consists of carefully selected semi-finished components. Durable nylon filaments are cut and bundled into brushes. Hard and impact-resistant plastic profiles are cut to measure, after which holes are drilled into them. The brushes are then implanted into the holes. The PVC profiles are threaded together with flexible stainless steel wires, which also keep them firmly in place..

Mats with your own logo

You can also customize the ABI Brush Mats with your own logo in color. Give your entrance a personal and exclusive touch!

Discover the possibilities

Specifications

Mat thickness22 mm
Profile distance4 mm
BrushesNylon 6.6 (polyamide). This material has the property of returning to its original shape after being walked upon.
Plastic profileRecycled PVC. This application immediately displays the perfect characteristics: the right strength and is resistant to all weather conditions (+90 ̊ to -50 ̊).
End profileU profile, 2 mm thick anodised aluminium 15x20x15. An aluminium angle edge profile is also possible.
Binding wires2 mm diameter rust-proof or stainless steel wire.
Afstandscupjes4 mm thick EPDM.
Garantie5 years on brushes, plastic pro les, with normal use and regular maintenance.
Gewichtca. 15 kg/m2

Click on image to enlarge

ABI Alucable Mats

A wire construction is used to bind the profiles together

The Alucable mat Senior can be compared with our ABI Aluvlex mat Senior in many respects, with as main difference the way in which the mat is assembled. In the Aluflex mat the profiles are bound together with a durable and exible synthetic strip, whereas in the ABI Alucable mat a wire construction is used to bind the pro les together.

For extremely heavy use

Our ABI Alucable mat XXL is eminently suitable for extremely heavy use of your entrance. This mat is the strongest of the ABI Aluflex mats and our ABI Alucable mats and is suitable for transport trolleys, pallet trucks, fork lift trucks and even cars, as this XXL mat can take weight up to 3800 kg per 100 cm2!

ABI Alucable Mats are available in 4 variants

Abi Alucable Mat Senior

The Alucable mat Senior can be compared with our ABI Aluflex mat Senior in many respects, with as main difference the way in which the mat is assembled

In the Aluflex mat the profiles are bound together with a durable and flexible synthetic strip, whereas in the ABI Alucable mat a wire construction is used to bind the profiles together.
Aluminium height16 mm
Aluminium thickness1,15 mm
Mat height23 mm with brushes
20 mm with carpet
21 mm with needle punch
21 mm width rubber
Profile distance4 mm
ConnectionStainless steel wire, 2mm diameter
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needle punch, thickness:
10 mm, available in 3 colours

EPDM rubber, high-quality, ribbed pro le to avoid slipping on a wet surface
ProfileBrushes, needle punch, carpet or rubber are housed in an aluminium pro le, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight2100kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 16kg / m2

Click on image to enlarge

You can also customize the ABI Brush Mats with your own logo in color. Give your entrance a personal and exclusive touch!

Discover the possiblities »

ABI Alucable Mat XXL

This mat is the strongest of the ABI Aluflex mats and our ABI Alucable mats and is suitable for transport trolleys, pallet trucks, fork lift trucks and even cars.

Aluminium height20 mm
Aluminium thickness2,5 mm
Mat height27 mm with brushes
24 mm with carpet
25 mm with needle punch
25 mm with rubber
Profile distance4 mm (EPDM distance cups)
ConnectionStainless steel wire, 2 mm diameter
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needle punch, thickness:
10 mm, available in 3 colours

EPDM rubber, high-quality, ribbed pro le to avoid slipping on a wet surface
Profilebrushes, needle punch, carpet or rubber are housed in an aluminium profile, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight3800kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 21kg / m2

Click on image to enlarge

You can also customize the ABI Brush Mats with your own logo in color. Give your entrance a personal and exclusive touch!

Discover the possiblities »

ABI Alucable Mat Mini

The ABI Alucable mat Mini is an excellent option for places that have shallow mat wells. In this case our Aluflex mat Junior is also a good choice, as it is comparable in height to our Alucable mat Mini design. However,our Mini design is the mat that suits your needs best if you are looking for a mat with discreet aluminium profiles that are bound together by a wire construction.
Our Alucable mat Mini is available in two designs, with or without a scraping profile.
Scraping profiles are a good alternative for brushes if the low height of the well makes the use of brushes impossible, but you would like extra scraping action to ensure a clean entrance.

Aluminium height9,8 mm
Scraping profilealuminium brut, height of 10 mm
Aluminium thickness1,15 mm
Mat height14 mm with brushes
13 mm with carpet
12 mm with needle punch
12 mm with rubber
Profile distance4 mm (EPDM distance cups)
ConnectionStainless steel wire, 2 mm diameter
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours polyamide walk-off carpet

Diamond quality, available in 12 standard colours

Needle punch, thickness: 6 mm, available in 3 colours

EPDM rubber, high-quality, ribbed pro le to avoid slipping on a wet surface
ProfileBrushes, needle punch, carpet or rubber are housed in an aluminium pro le, of excellent strength and is resistant to all weather conditions (+90 ̊ to –50 ̊)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight1500 kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 6,5kg / m2
with scraping profile ca. 7,5kg / m2

Click on image to enlarge

ABI Alucable Mat 10×10

If you would like to combine carpet/needle punch and brushes for indoor use, the ABI Alucable mat 10×10 provides an excellent solution.

These carpet and brush strips are alternately bound together with the same flexible stainless steel wires as in our other Alucable mats and Brush mats. This is the perfect combination of brushes and moisture absorbing carpet, for indoor use only..
Aluminium height18 mm
Aluminium thickness1,2 mm
Mat height22 mm
Profile distance4 mm EPDM distance cups
ConnectionStainless steel wire, 2 mm diameter
InlayNylon 6.6 (polyamide) brushes, 10mm x 10mm. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needlepunch, thickness: 10 mm, available in 3 colours
Profilebrushes and carpet or needle punch are housed in an aluminium pro le, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight2100 kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 16 kg / m2

Click on image to enlarge

ABI Aluflex Mats

The sustainable solution for a clean entrance

Our ABI Aluflex mats consist of durable materials and have a high-quality construction, which makes the ABI Aluflex mats superbly suitable for heavy and intensive use under the most extreme circumstances.

Depending on which inlays are used in the Aluflex mats, these mats are very suitable for both the rst and second entrance areas. The Aluflex mat with brushes is most suitable for the entrance area, outdoors, to keep coarse grit and sand outside the premises. When you step inside, carpet can be used to remove the remaining dirt and moisture from the shoe soles.

This is the ideal way to keep your company, building, of ce or shop perfectly clean indoors!

Build

The Aluflex mats are constructed from aluminium pro les with three rows of brushes, 2 cm-wide strips
of polyamide carpet, EPDM rubber strips, 10 mm high needle punch or a combination of these. The possibilities of different combinations between brushes, rubber and carpet provide an optimal scouring action. The pro les are bound together with a durable and flexible PVC strip. This makes that these mats are very flexible and can easily be cut in any desired shape. We can process logos into all our aluflex mats with brushes. An odization of the aluminium profiles is also possible.

As entrance mats are often installed in a well and the depth of the well often varies, our ABI Aluflex mats are available in three different heights.

ABI Aluflex mat Senior

Aluminium height16 mm
Aluminium thickness1,15 mm
Mat height23 mm with brushes
20 mm with carpet
21 mm with needle punch
21 mm with rubber
Profile distance4 mm
Connection PVC connection strip
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needle punch, thickness: 10 mm, available in 3 colours

EPDM rubber, high quality, ribbed pro le to avoid slipping on a wet surface
ProfileBrushes, needle punch, carpet or rubber are housed in an aluminium profile, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight2100kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 16 kg / m2

Click on image to enlarge

A logo in your mat will enable you to personalize your entrance and give your building a smart appearance!

Discover the possibilities »

ABI Aluflex mat Medium

You can also opt for our ABI Aluflex mat Medium when the total height varies between 17 and 20 mm, depending on the inlays. This mat looks exactly the same as our Senior design, except for the height of the aluminium profile which is only 13 mm.
Aluminium height13 mm
Aluminium thickness1,15 mm
Mat height20 mm with brushes
17 mm with carpet
18 mm with needle punch
18 mm with rubber
Profile distance4 mm
ConnectionPVC connection strip
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needle punch, thickness: 10 mm, available in 3 colours

EPDM rubber, high-quality, ribbed pro le to avoid slipping on a wet surface
ProfileBrushes, needle punch, carpet or rubber are housed in an aluminium pro le, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight2100kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 14kg / m2

Click on image to enlarge

A logo in your mat will enable you to personalize your entrance and give your building a smart appearance!

Discover the possibilities »

ABI Aluflex mat Junior

In contrast to our two other designs the height of the ABI Aluflex mat Junior is only 12-15 mm, with aluminium pro les of only 8 mm height. Due to its construction, the walked-on side of the Junior design displays comparatively more aluminium than the other two Aluflex mats.

Suited for shallow mat wells

This low height makes the ABI Aluflex mat Junior mat perfect for those places with shallow mat wells or places where the doors open outwards.

Aluminium height8 mm
Aluminium thickness1,15 mm
Mat height15 mm with brushes
12 mm with carpet
13 mm with needle punch
13 mm with rubber
Profile distance4 mm
ConnectionPVC connection strip
InlayNylon 6.6 (polyamide) brushes. This material has the property of returning to its original shape when walked on, available in 16 colours

Polyamide walk-off carpet, Diamond quality, available in 12 standard colours

Needle punch, thickness: 10 mm, available in 3 colours

EPDM rubber, high-quality, ribbed pro le to avoid slipping on a wet surface
ProfileBrushes, needle punch, carpet or rubber are housed in an aluminium pro le, of excellent strength and is resistant to all weather conditions (+90° to -50°)
AluminiumStandard brut, but anodising in other colours is possible in larger projects
Max. weight1500kg per 100 cm2
Guarantee5 years on aluminium pro les and inlays, with normal use and regular maintenance
Weightca. 12kg / m2

Click on image to enlarge

ABI Aluflex mat Curved

Every designer’s dream

Our Aluflex mat Curved is the dream of every designer. This radius mat is a high-quality product with a marvellous appearance. The Aluflex mat Curved is available in both our Aluflex Medium and Aluflex Senior design. The possible inlays are rubber, needle punch or one of the 12 colours of carpet.

Click on image to enlarge

Entrance Mats

An overview of the types of entrance mats we offer

ABI Brush Mats

ABI Aluflex Mats

ABI Alucable Mats

ABI Duplomats

The ABI defines the field of technical brushes and entrance mats

Manufacturers of doormats for more than a century

ABI is an icon in the field of technical brushes and entrance mats. Founded in 1910, it has for three generations developed into an all-inclusive supplier of brushes.

One of our core activities is the manufacturing of a complete assortment of entrance mats, including brush mats.

Our mats are supplied to customers all over the world. Today we supply to more than 45 countries! Our service not only includes selling and manufacturing, but if required also includes measuring and a professional installation of the mat.

If you would like further information, you are welcome to make an appointment with our sales team or visit our showroom. Our doors are always open for you!

Our service doesn’t stop at production or sales

DE ALMELOSE BORSTEL INDUSTRIE IS SPECIALIZED IN THE FIRST TWO ENTRANCE AREAS

Entrance areas

ABI (Almelose Borstel Industrie) is specialized in the first two entrance areas, partly thanks to our brushes, which, as manufacturers, we use in all sorts of shapes and sizes in our entrance mats.

First area

The first area is designed to remove coarse grit, sand and gravel from shoe soles. Our roll-up brush mat and Aluflex mats with brush inlay or rubber are just right for this job. You can, of course also opt for our Duplomat with brushes, rubber or a combination of the two.

Second area

Once you step inside, the second area will ensure that moisture will not get any further. This provides the optimum solution to keep your building, shop or office clean indoors!
For this second area both our Aluflex mats with carpet strips and needle punch carpet and our Duplo mats are widely used.

entreezones1

ABI DOES ITS UTMOST TO RESPECT THE ENVIROMENT

We try to produce as green as possible

Environment

ABI does its utmost to respect the environment and to make the manufacturing processes as “green” as possible. Some of our mats are even for 100% made of recycled material!

Recycling even starts at the office where paper, plastic and cartridges are carefully separated. The money we receive for the recycling of our cartridges is donated to organizations which make positive contributions to our nature.

Production

We also pay careful attention to recycling during the manufacturing process of our mats as during this process there is always refuse remaining.
This refuse is collected and the aluminium is melted down for recycling. The remains of the PVC and nylon are sent back to our supplier for recycling and will be used again in our entrance mats.

Thus, ABI is trying in its own way to contribute its mite to a better and healthier living environment!

recycle

DE ALMELOSE BORSTELINDUSTRIE

A safe entrance starts with a fire safe mat!

Fire safety

All our mats are tested in accordance with the European Fire Safety Standards to ensure that people’s safety is protected if fire breaks out in a place where our mats are installed.

Some of our mats meet even the strictest European Bfl-S1 fire safety standard, ensuring that the mat is almost non-flammable, self-extinguishing and producing hardly any smoke!

TUV tested

The fire behaviour testing of all our mats is carried out by TÜV Rheinland in the Netherlands.

Don’t hesitate to ask our sales team for more detailed information about the fire safety of your chosen entrance mat.

A safe entrance starts with a fire safe mat!

pag-4

GUARANTEE CONDITIONS

5 years guarantee on the profiles, aluminium and the monofilaments (nylon brushes)

Guarantee Conditions

n adherence with the maintenance tips provided in this brochure, we can provide a guarantee of 5 years on the profiles, aluminium and the monofilaments (nylon brushes).

Please note that there is a 20% write-off per annum.

Provided that the mat is rolled up properly when being moved, we can also give a 5-year guarantee on the construction.

Please bear in mind that our Brush mats consist of regenerated PVC profiles which makes that these mats may expand up to 10 mm if placed in full sun or nearby window panes. The window panes may act as a magnifying glass, causing the mat to expand. If the mat well does not allow for expansion there is a risk of the mat curbing.
We will be happy to give you technical advice if the selection of the best suitable mats for certain locations is difficult for you.

Also lighter colours such as orange, yellow, mint green, pale grey and white are more susceptible to damage resulting from the effects of UVA and UVB. Please bear in mind when determining the location of the mat (in the sun or near window panes).

garantie

MAINTENANCE CONDITIONS

Like floors the entrance mat needs maintenance

Maintenance Conditions

Like floors the entrance mat needs maintenance. It is recommend to clean the mat regularly to prolong its life span considerably. Depending on the use and the time of the year, this may be needed more or less frequently (daily, weekly, monthly). The location of the mat, the traffic and the intensity of the traffic all affect the frequency of the cleaning. Don’t hesitate to contact us if you are unsure about the cleaning frequency. We will be happy to give you advice!

Advice

Some advice to increase the life span of your mat:

  • Roll up the mat, (don’t drag it!), sweep or vacuum the floor underneath and roll the mat back. Depending on the time of the year, this may be needed more or less frequently.
  • Only move the mats when they are rolled up with the brushes or carpet facing inwards to avoid damaging the inlays. For Duplomats, lift the modules.
  • The floor surface or mat well must be smooth and kept clean. Sand, grit and small stones can reduce the life span of the mat considerably.
  • Vacuum the surface of the mats, and in particular of the Duplomats with a closed construction, or in the event of larger soiling, clean the mat with a hard brush or high-pressure cleaner. Please note, only use water and no other detergents!

DE ALMELOSE BORSTELINDUSTRIE

Producer of entrance mats

ABI Brush Mats

ABI Aluflex Mats

ABI Alucable Mats

ABI Duplomats

Discover our profiles »

Please visit our other website: abibrush.nl
